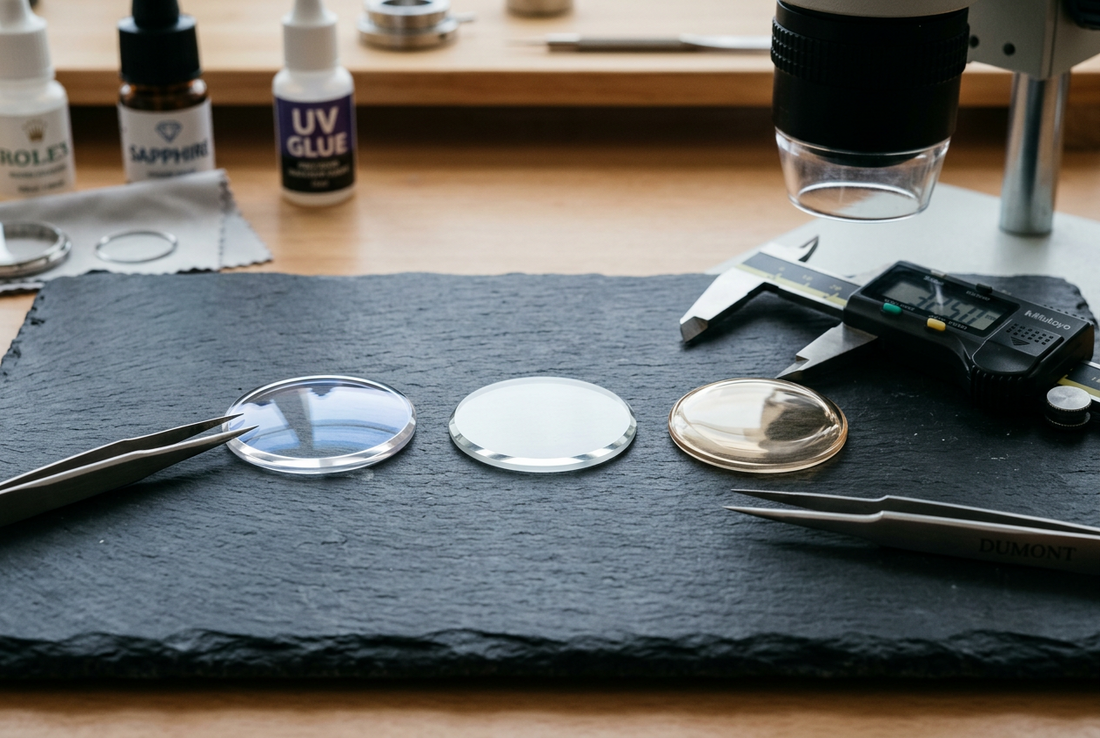

Watch Crystal Manufacturing & Materials: The Complete OEM Guide (Sapphire, Mineral & Acrylic)
Share
Two watches can print the same words on their spec sheet, "sapphire crystal," leave the same Guangzhou industrial park, and differ tenfold in factory price. The difference rarely sits in the material. It sits in the five parameters nobody wrote into the drawing: boule grade, dome profile, thickness tolerance, coating position, and whether anybody ran the pressure test again after the crystal went in.
If you have already sourced cases and dials, you have met this. Most suppliers quote the crystal on a single line, as if it were a commodity. Watch crystal manufacturing decisions start much earlier than material choice, and most comparison pages online come from retailers who have never run a polishing line. This is the factory-side version: what each material really costs, how sapphire is grown, where scrap happens, what tolerance to hold, and how to brief the whole thing in ten lines.
We have built OEM and ODM watches in Guangzhou since 1990. If you are still mapping the product, start with our guide to starting a watch brand in 2026, then come back for the crystal spec.
Key Takeaways:
- Acrylic, mineral and sapphire are not better or worse. They are three price positions. Mohs 3, 5 to 6.5, and 9 map onto three retail bands.
- Shape and coating move your unit cost further than material does. A flat mineral disc and a box sapphire with coating on both faces can sit an order of magnitude apart per piece.
- ISO 14368 already wrote down dimensions, assembly, defects and coating tests. Reference it on your drawing instead of inventing numbers, and JOEFOX builds full custom watches from MOQ 300.
What a Watch Crystal Actually Has to Do
Most brands brief the crystal last, after the dial artwork is locked and the case has gone to CNC. That order is backwards. The crystal carries four jobs at once, and it is the part your customer touches, scrubs against a doorframe, and reads the time through all day.
- Sealing. With its gasket or adhesive layer, it closes the case against water and dust. If it leaks, nothing else about the watch survives the review.
- Transmission. Printed markers, hand tips and lume have to read through it, which makes coating a legibility decision, not a cosmetic one.
- Impact behaviour. It takes the knock on a tile floor. Whether it flexes, chips or cracks decides what comes back to you.
- Positioning. It sets date-window alignment and magnification lens position. A 0.1 mm drift reads as a defect even when nothing leaks.
Here is what that costs in practice. In 2024 a UK brand came to us with a 3,000-piece quartz run already in tooling. Their previous factory had specified a 1.0 mm flat mineral crystal on a case sold as 5 ATM. Three months after delivery, returns reached about 4%, all condensation under the crystal. The material was never the problem. Nobody had re-run the pressure check after the crystal was pressed, and gasket compression was never verified against the actual crystal diameter. The crystal is rarely the headline spec, so it is rarely the spec anybody checks.
The Three Crystal Materials, Spec'd Factory-Side
Acrylic, mineral glass and synthetic sapphire are the three families worth quoting. Everything else on the market is a variation on one of them. Each fails differently, costs differently, and needs a different tolerance on the drawing.
| Property | Acrylic (PMMA / Hesalite) | Mineral (K1 / Hardlex) | Synthetic sapphire |
|---|---|---|---|
| Typical hardness | ~3 Mohs | 5 to 6.5 Mohs, Hardlex to 7 | 9 Mohs, ~1,370 kg/mm² Knoop, 1,800 to 2,000 HV |
| Scratch behaviour | Marks easily, polishes out | Marks and cannot be polished out | Resists almost every daily contact |
| Impact behaviour | Flexes, rarely breaks | Chips or cracks | Chips or shatters at the edge |
| Coating need | Usually none | Optional single-side AR | AR expected above $250 retail |
| Crystal MOQ | 100 pcs | 100 pcs | 10 to 100 pcs, custom |
| Typical custom piece price | Lowest | Mid | About $2 to $30 by size, shape and coating |
| Best retail band | Under $80 | $80 to $250 | $250 and up |
Acrylic Crystal (PMMA / Hesalite)
Acrylic crystal is polymethyl methacrylate, sold as PMMA across Asian supply chains and as Hesalite in vintage-inspired specs. It reads about 3 on the Mohs scale, costs the least of the three, and fails by scratching rather than shattering. Our shorthand: acrylic below roughly $80 retail, or whenever you want a warm, slightly domed look. On your drawing it is worth saying that scratches can be buffed out, because that turns a returns problem into a customer-service script. Injection-moulded acrylic also lets you hold a 1.8 to 2.5 mm dome for almost no tooling premium, which is why it stays popular for retro pieces.
Mineral Crystal, K1 Glass and Hardlex
Mineral crystal is hardened soda-lime or borosilicate glass, typically 5 to 6.5 Mohs, chemically hardened rather than grown. K1 glass is the standard hardened mineral used across Asian OEM lines, and Hardlex is Seiko's house name for chemically hardened glass that can reach 7 Mohs. It sits between acrylic and sapphire on both price and scratch resistance. Mineral answers the brief when you need a hard flat surface at a value price and the case already carries the water resistance your market expects. One caution for costing: the hardening step is what buys the Mohs jump, so a cheap "mineral" quote may describe untreated glass with none of it.
Synthetic Sapphire Crystal
Sapphire crystal watch production starts with single-crystal aluminium oxide, Al2O3, grown as a boule and then machined rather than moulded. It reads 9 Mohs, roughly 1,370 kg/mm² Knoop and 1,800 to 2,000 HV, and it is the only one of the three that resists keys, sand and concrete indefinitely. That hardness is also the cost driver: everything after growth happens with diamond tooling, which is where both your money and your lead time go. Sapphire starts making sense once the retail band clears about $250, or when the whole product story rests on staying unscratched.
Whichever material you pick, it only seals against the case you already designed. The tolerance stack between case seat, gasket and crystal lands is behind more of the leaks we see than any material defect, so read our watch case materials guide (316L, titanium, alloy) before you freeze those numbers.
Want your crystal spec priced against real production? Send the drawing and target quantity to JOEFOX → and get material, profile and coating quoted as one line item.
How Sapphire Crystal Is Actually Made
Nobody moulds sapphire. Every sapphire crystal starts as a boule, and the growth method decides internal stress, clarity and price before a single part is cut. Three growth methods cover most of what arrives at an assembly line. Ask your supplier which one they bought.
Verneuil (Flame Fusion)
The Verneuil process drops high-purity alumina powder through an oxyhydrogen flame so molten droplets crystallise onto a seed. It is the cheapest route and still common for watch crystals, but rapid cooling leaves higher internal stress and curved growth striae visible under a loupe. For a flat 1.2 mm dress crystal it is usually fine. Ask your supplier to confirm the boule source, because switching from Kyropoulos stock to Verneuil stock is an easy way to shave cost without changing a single line on the quotation.
Kyropoulos
The Kyropoulos method melts alumina in a crucible and cools it slowly so one large crystal forms in place. Slow, energy-hungry, and worth it. Low thermal gradient means low dislocation density and low internal stress, which matters most on thick and box-shaped parts where stress shows as haze or warp after polishing. If your design calls for anything above 2.5 mm or any stepped profile, specify Kyropoulos-grown stock and expect to pay for the cycle time.
Czochralski
The Czochralski method dips a seed into the melt and pulls it upward while rotating, growing a rod along a controlled axis. It delivers good optical purity with fewer inclusions than flame fusion, though higher residual stress than Kyropoulos, and it is less common at industrial scale today. It still appears when a project needs a specific crystal orientation cut rather than a standard c-plane slice.
From Boule to Finished Crystal
The route from boule to finished part goes: core drilling, diamond wire slicing, flat grinding, edge profiling, diamond lapping, polishing, cleaning, coating, and final inspection. Scrap concentrates in three places: kerf loss during slicing, edge chipping during profiling, and inclusion rejection after the slice reveals something the boule certificate did not. Polishing is the slowest and most expensive step. That is the whole reason a double dome costs multiples of a flat disc. Our watch QC and inspection process document details how we hold each stage.
Shapes, Thickness and Profiles: The Cost Ladder
Once material is set, geometry is where the money moves. Two quotes for the same material can differ sharply purely on profile.
| Profile | Relative cost | Scrap risk | Typical use |
|---|---|---|---|
| Flat | Baseline | Lowest | Dress, minimalist, skeleton display backs |
| Single dome (outer) | Moderate step up | Low to moderate | Vintage-inspired, retro dress |
| Double dome | High, rises with dome height | Moderate to high | Mid-luxury, sapphire sandwich cases |
| Box / stepped | Highest | High, each plane must meet cleanly | Vintage reissue, collector products |
Each step up adds lapping time, more polishing stages, and a higher chance the final optic is rejected for waviness under angled light. Once you approve a double dome or box profile, that decision is effectively permanent for the production run, so cost it at sampling rather than at first article.
| Use case | Thickness | Note |
|---|---|---|
| Dress or minimalist | 1.0 to 1.5 mm | Keeps the case slim and the movement visible |
| Sport or field | 1.8 to 2.5 mm | Handles knocks without a tall case wall |
| Professional dive | 3.0 mm and up | Pair with a real case rating, never rely on the crystal alone |
How Thick Should a Watch Crystal Be?
Budget 1.0 to 1.5 mm for dress, 1.8 to 2.5 mm for sport and field, and 3.0 mm and up for professional dive. Thickness resists deflection so the gasket stays compressed, but it does not create the rating. Pair it with a tested case.
Thickness does not buy water resistance by itself, and this is one of the most misread specs on the sheet. A thicker crystal resists deflection, which helps a gasket stay compressed under pressure, but the rating comes from the whole assembly. Our IP68 waterproof watch manufacturing guide covers the chamber testing behind a printed number.
Three details also belong on the drawing. Specify the chamfer angle and width, because a polished edge is a visible line and a sharp one chips in transit. Specify the date window position and radius, holding roughly ±0.05 mm. And decide whether a date magnifier is bonded or machined into the crystal; a bonded lens adds a process step and an alignment failure mode, while a machined one adds material cost and usually needs a thicker blank.
Anti-Reflective Coating: Where Field Failures Usually Start
Before any coating, measure what you lose. Untreated sapphire reflects roughly 8% of incident light per face because of its refractive index near 1.76. Coating one face brings that to about 1%. Anti-reflective coating on both faces drops total reflection below 0.5% and lifts transmission well past 95%. Seen head-on, a well-coated crystal almost disappears. That is the first thing a buyer notices in a product shot.
Placement splits three ways, and reversing the call later means scrapping parts.
- Inner-only. Applied to the underside, protected from abrasion, no hairline scratching from shirt cuffs. It can read as a faint blue haze at the edge under raking light, and if the film fails the crystal has to be scrapped rather than re-polished.
- Outer-only. Best apparent contrast from the top and the cheapest quote. The film then meets everything your customer touches, and this is where field failures come from.
- Both faces. The premium answer, standard above roughly $500 retail, and priced accordingly because every part goes through the vacuum chamber twice.
A real coating case: In 2023 a German microbrand specified outer-only AR on 1,200 units of a field watch to save about $0.60 per piece. Roughly nine months later, around 9% of units showed hazy cuff-wear tracks across the upper third of the crystal, worse on owners who wore the watch under a shirt cuff every day. The brand replaced crystals on 74 watches and reordered with inner-only AR at a higher unit cost. The saving cost them several times over, plus a season of reviews nobody could retract.
Five Things to Verify Before You Sign Off a Coating Supplier
Ask for evidence on each of these before you approve a coated sample:
- Adhesion tested by cross-cut and tape pull after the full film stack, not on a bare substrate.
- Humidity and heat cycling results, since most coating failure is adhesion failure that starts invisible.
- Cleanroom class at the coating line, because dust under the film shows as a permanent speck.
- Film thickness monitoring, ideally both quartz crystal monitoring and in-situ optical monitoring across layers.
- Batch traceability linking a crystal lot to a coating run, so a failure can be isolated instead of a whole shipment.
ISO 14368-4 covers anti-reflective treatments specifically and gives you test methods to reference. Coating also interacts with dial finish more than people expect, so pair this decision with our custom watch dials and hands design guide before you lock either one.
The Watch Crystal Spec Sheet: Dimensions, Tolerances and Assembly (ISO 14368)
ISO 14368 is the horology standard for mineral and sapphire watch-glasses, and it is the language your drawing should already be speaking. Four parts matter to you: ISO 14368-1 for dimensions and tolerances, ISO 14368-2 for assembly to the case by adhesive or gasket, ISO 14368-3 for defect criteria and test methods, and ISO 14368-4 for anti-reflective treatment.
What Dimensional Tolerance Should the Drawing Hold?
In our experience the practical targets are ±0.01 mm on diameter, ±0.02 mm on thickness, and flatness under 0.005 mm. Those are what we specify on ground and machined crystals coming into our own assembly line. Acrylic is moulded rather than ground, so confirm realistic figures with your molder before you copy the same callout across materials. Looser than about ±0.05 mm on diameter shows up as inconsistent gasket compression across a batch. That slack is what sank the UK order at the top of this article. Note too that ISO 14368-1 is written for round flat crystals up to 35 mm, so anything domed or non-round needs additional callouts rather than a silent reference.
Adhesive Bonding vs. Gasket Assembly
Two ways to close it, per ISO 14368-2. A crystal gasket is a compressible ring, serviceable, forgiving of small dimensional drift, and the right choice when you want the piece repairable. Adhesive bonding, usually UV-cured resin, gives a lower stack height and a clean modern line, but it is permanent and far less tolerant of height variation. Choose based on service strategy and case height, not habit. A dive product meant to be opened every few years should almost always be gasketed.
Sealing never rests on the crystal alone. The caseward neighbours carry equal load, so model those interfaces with our watch bezel insert manufacturing guide and our watch crown and pusher spec guide.
Spec review before tooling: Our engineers check crystal drawings against the case model for a seat fit before any cutting starts. If your gasket groove is missing a compression figure, we flag it then, when it costs a revised PDF, rather than later.
Watch Crystal QC, Defects and Pre-Sign-Off Inspection (ISO 14368-3)
ISO 14368-3 gives you both the vocabulary and the test methods. Name defects using its nomenclature on your inspection sheet so a rejected part has an agreed label rather than an argument:
- Chip: missing material at the edge or radius, the classic transit and press-fit failure.
- Scratch: surface marking from handling or assembly, judged by length under a specified light angle.
- Bubble: void inside the material, mostly a growth issue on sapphire and a moulding issue on acrylic.
- Internal stress striae: growth lines inside the crystal, often invisible until the part is polished and angled into the light.
- Coating spot: a mottle, patch or pinhole in the film, usually contamination during deposition.
Incoming inspection runs 100% visual under controlled lighting for the outer surface, plus dimensional sampling on every lot. Then comes the step too many factories skip. Water resistance has to be re-tested after the crystal is fitted, because pressing a crystal can nick a gasket, seat it unevenly, or leave a resin gap invisible from outside. Our post-assembly pressure test routine lists the full sequence, and the post-assembly test is the checkpoint we would not trade away.
Cost, MOQ and Lead Time
How Much Does a Custom Watch Crystal Cost?
Custom sapphire in volume runs about $2 to $30 per piece, set by boule grade, profile complexity, thickness, coating faces and tolerance class. Flat mineral and acrylic sit well below that range. Tooling, MOQ and lead time move the landed number more than material does, so price the full assembly, not the disc.
Custom sapphire in volume prices roughly $2 to $30 per piece depending on five factors: material grade and boule source, profile complexity, thickness, coating configuration, and how tight the tolerance plus any logo marking must be. Standard mineral and acrylic crystal runs sit well below that range. MOQ depends on what you are buying: a custom sapphire crystal typically starts at 10 to 100 pieces, while standard glass components usually begin at 100 pieces. Sampling takes about 10 to 20 days and mass production about 20 to 40 days from approved samples. To see how the crystal line sits inside a full unit cost, read our guide to watch manufacturing in China. A complete watch program at JOEFOX starts at MOQ 300, and our OEM vs ODM watch manufacturing breakdown explains how crystal, case, dial, hands and assembly get quoted as one package.
| Retail band | Recommended crystal | Coating | Why |
|---|---|---|---|
| Under $50, gifts and promotions | Mineral or acrylic | None | The buyer will not pay for sapphire; see our Amazon FBA watch sourcing guide |
| $50 to $200 | Flat mineral, or flat sapphire | None or inner | Choose by how much the story needs scratch resistance |
| $200 to $500 | Flat or single-dome sapphire | Inner anti-reflective | Clarity without street contact risk |
| $500 and up | Double-dome or box sapphire | Both faces | The finish is part of the product story |
A real costing case: A US brand asked us to quote sapphire crystal on a $49 retail promotional watch in early 2025. We ran it both ways. On 2,000 units, sapphire moved landed cost per unit up by roughly $6.20 after thicker cases and new gasket tooling, for a claims saving they would likely never see at that price point. They launched on K1 mineral instead and put the budget into better straps and bracelets. That is the right call most of the time at this band, and it is the kind of decision better made before tooling.
Need numbers attached to your own design? Send us your drawing for a crystal quote → and we will return material, profile and coating options with real MOQ and lead time.
How to Brief Your Factory: A Crystal Spec Template
Send these ten lines with every request and you will get an accurate quote on the first pass:
- Case drawing with crystal seat diameter and depth
- Material: acrylic, mineral (K1 or equivalent), or synthetic sapphire
- Profile: flat, single dome, double dome, or box, with drawing
- Thickness and thickness tolerance
- Diameter and diameter tolerance
- Assembly method: gasket or adhesive, per ISO 14368-2
- Coating: none, inner, outer, or both faces
- Edge finish: chamfer width, angle, polished or matte
- Additional features: date window position, magnifier type, logo mark
- Quantity, target unit price, and delivery date
Our private label watch manufacturing program accepts the same checklist at the whole-watch level, which keeps the crystal from being spec'd in isolation.
FAQ
What Is the Difference Between Sapphire, Mineral and Acrylic Crystals?
Acrylic, around 3 Mohs, costs least and buffs out scratches. Mineral, hardened to 5 to 6.5 Mohs, costs mid-range and cannot be polished once marked. Synthetic sapphire reads 9 Mohs, resists nearly all daily contact, and is the only one machined with diamond tooling, which drives its price.
What is MOQ for custom sapphire watch crystals?
Custom sapphire crystal usually starts at 10 to 100 pieces depending on shape and coating. Standard mineral and acrylic components generally begin at 100 pieces. A complete custom watch program at JOEFOX starts at MOQ 300.
Is sapphire worth it on a $50 promotional watch?
Usually not. Sapphire adds several dollars per unit once you count the thicker case and gasket changes, and a gift buyer will rarely pay for it. Mineral glass or acrylic protects your margin better at that band.
Does a thicker crystal improve water resistance?
Not on its own. Thickness reduces deflection so the gasket stays compressed, but the rating comes from the full assembly: caseback seal, crystal seal, crown and pushers. Always re-test after the crystal is fitted.
Should AR coating go on the inside or the outside?
Inside for field watches, because the film is protected from abrasion. Outside reads better from the top but wears from daily contact. Both faces is the premium answer above roughly $500 retail.
Can you laser-etch or print a logo on the crystal?
Yes. Marking can be laser-etched into the underside or pad-printed, with position tolerances worth specifying on the drawing. Marked crystals add one process step and should be quoted at sample stage.
What tolerance should I hold on a crystal drawing?
In our experience, ±0.01 mm on diameter, ±0.02 mm on thickness, and flatness under 0.005 mm are typical targets for machined crystals. Anything looser than ±0.05 mm on diameter tends to produce uneven gasket compression across a batch.
How long does crystal tooling and sampling take?
Sampling runs about 10 to 20 days, and mass production about 20 to 40 days from approved samples. Box and double-dome profiles sit at the long end of both windows.
Conclusion: Five Parameters, One Drawing
That is the whole job of watch crystal manufacturing: five parameters written down before tooling, verified again at sign-off. The crystal that earns its keep is the one whose profile, thickness, coating, tolerance and post-assembly test were all written down before tooling started, and checked once more at sign-off.
